FastARC Robotic Welding Cells

Acieta FastARC Guide - Features and Specifications

Address Labor and Capacity Challenges With Automation

Manufacturers that are positioning for growth are planning for automation. The challenge with adopting complex, custom solutions lies in the time and capital investment for custom integrations.

If you’re faced with capacity challenges, labor shortages or quality variability, standard robotic welding cells from Acieta can help you address key business challenges, fast. Our FastARC® welding cell is an excellent option for companies adopting automation for the first time, or companies that are looking for a strategic automation partner to help them move forward.

As soon as six weeks lead time on standard FastARC weld cells!

Improve welding production without adding labor

Keep your torch running consistently and constantly with FastARC, Acieta’s standard robotic welding cell. Maximize uptime with 24/7 access to Acieta certified service and maintenance teams.

Our FastARC automated welding cells were designed to meet the most common robotic welding needs, and are a fast way to get started on your automation journey. FastARC provides a cost-effective introduction to Acieta’s premium-quality hardware and software. Each welding cell is ready to work with Lincoln^® or Miller^® equipment.

Optimize Your Manpower

Why You Need to Consider FastARC Standard Robotic Weld Cells

Here are all the reasons FastARC Standard Robotic Weld Cells are your answer:

Excellent option for a first-time robot user
Pre-engineered for faster delivery
Small footprint and easy installation with one piece platforms
All utilities are integrated into the frame for faster start-up time
Load and unload while the robot is welding with dual zone cells
Produce different parts in each cell with dual zone cells

FASTARC ST SINGLE ZONE PLAIN TABLE

FANUC Arc Mate 100iD/12 six axis robot, R-30iB PLUS controller, iPendant and remote operator’s station
Software included, Ethernet IP Scanner, Advanced DCS package, Torch Guard, TorchMate, Collision Guard & Constant Path
Choose from Miller or Lincoln Electric power sources and wire feeders
Air cooled torch bundle
Grounded directly to table
(1) 28 inch X 90 inch work zone with 1500 lb. weight capacity evenly distributed
Complete safety barrier (1) automated pop up workspace door and (1) walk in access door with interlocks

FASTARC DT DUAL ZONE PLAIN TABLE

FANUC Arc Mate 100iD/12 six axis robot, R-30iB controller, iPendant and remote operators station
Software included, Ethernet IP Scanner, Advanced DCS package, Torch Guard, TorchMate, Collision Guard & Constant Path
Choose from Miller or Lincoln Electric power sources and wire feeders
Air cooled torch bundle
Grounded directly to table
(2) 28 inch X 45 inch work zones with 750 lb. weight capacity in each zone
Complete safety barrier (2) manual workspace doors and (1) walk in access door with interlocks

FASTARC TT DUAL ZONE TURN TABLE

FANUC Arc Mate 100iD/12 six axis robot, R-30iB controller, iPendant and remote operators station
Software included, Ethernet IP Scanner, Advanced DCS Package, Torch Guard, TorchMate, Collision Guard & Collision Guard, Constant Path and Multi-Group Motion
Choose from Miller or Lincoln Electric power sources and wire feeders
Air cooled torch bundle
Grounded directly to table
Servo Driven 71 inch turn table with (2) work zones. 750 lb. weight capacity in each work zone
Complete safety barrier includes (1) walk in access door with interlock and light curtain safety area to prevent entry while table is turning

FASTARC 2HT DUAL ZONE HEADSTOCK/TAILSTOCK

FANUC Arc Mate 100iC8L six axis robot, R-30iB controller, iPendant and 2 remote operators station
Software included, Ethernet IP Scanner, Advanced DCS Package, Torch Guard, TorchMate, Collision Guard & Collision Guard, Constant Path and Multi-Group Motion
Choose from Miller or Lincoln Electric power sources and wire feeders
Air cooled torch bundle
Rotary Ground on each Tailstock
(2) HS/TS servo driven work zones, 2500 mm between HS/TS Faceplates, 1200 mm swing diameter and 1500 kg total weight capacity in each station
Complete safety barrier (1) walk in access door with interlocks, (2) automatic pop-ups and light curtains at each operator station

FastARC 2HT+ DUAL ZONE HEADSTOCK/TAILSTOCK

This new dual robot configuration allows a second robot to be added, potentially doubling productivity with no needed additional floor space.

(2) FANUC Arc Mate 100iC8L six axis robots, R-30iB controller, iPendant and 2 remote operators station
Software included, Ethernet IP Scanner, Advanced DCS Package, Torch Guard, TorchMate, Collision Guard & Collision Guard, Constant Path and Multi-Group Motion
Choose from Miller or Lincoln Electric power sources and wire feeders
Air cooled torch bundle
Rotary Ground on each Tailstock
(2) HS/TS servo driven work zones, 2500 mm between HS/TS Faceplates, 1200 mm swing diameter and 1500 kg total weight capacity in each station
Complete safety barrier (1) walk in access door with interlocks, (2) automatic pop-ups and light curtains at each operator station

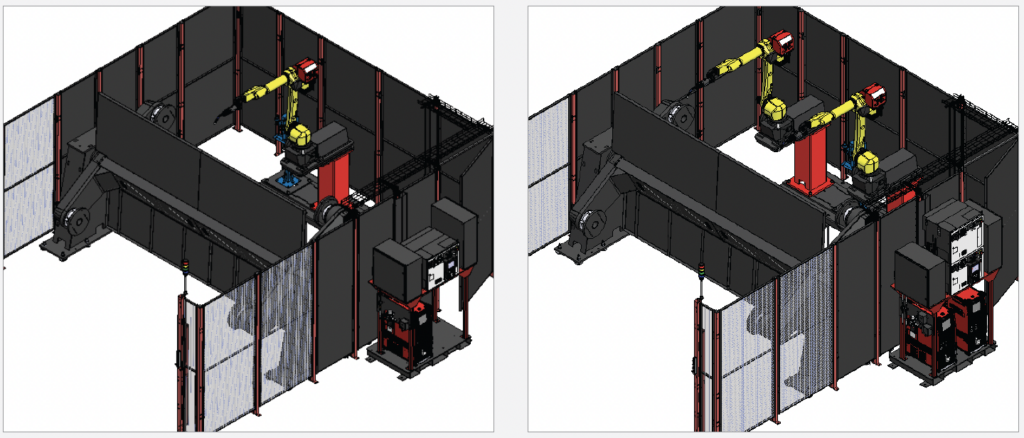

FastARC FW and FW+ FERRIS WHEEL

Keep it moving with a ferris wheel positioner
For a faster and more cost-effective method of robotic welding, the FastARC FW and FW+ cells feature a ferris wheel positioner.

The positioner rotates and manipulates an assembly while it is being welded. This is especially useful for large, heavy weldments and complicated jobs that require welds in many positions.

The final assembly is presented in the same location every cycle, so the operator doesn’t need to travel back and forth. This reduces potential for operator fatigue and repetitive motion injury.

RIA certified Risk Assessment completed
Excellent option for a first-time robot user
Pre-engineered for faster delivery
15’4″ x 18’6″ footprint
All utilities are integrated into the frame for faster start-up time
(2) 98″ tool length x 48″ swing diameter

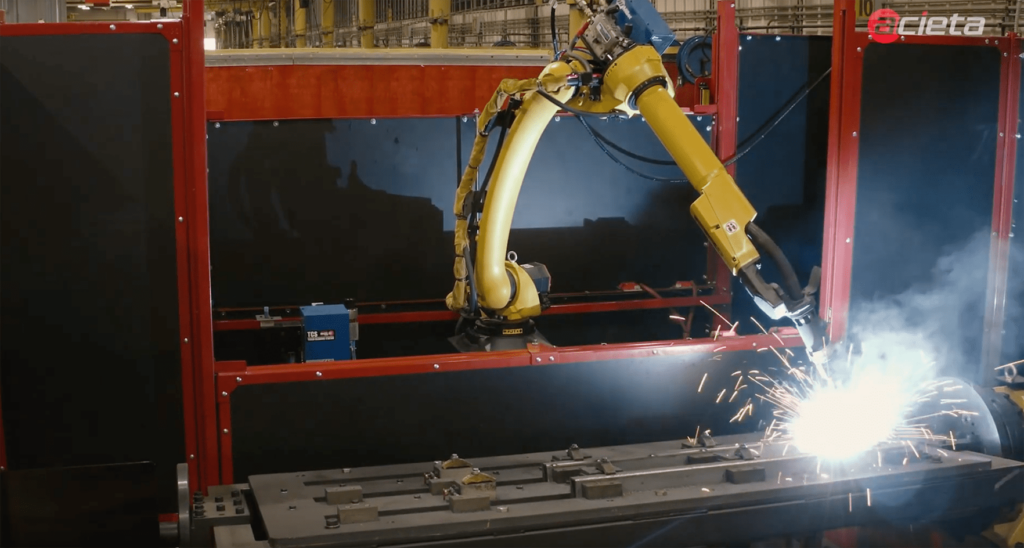

Robotic Welding Increases Productivity at MDS

Robotic welding helps increase productivity and reduce workers’ repetitive welding tasks. The FastARC 2HT standard robotic welding solution from Acieta provides high-quality, accurate and repeatable welds all day, every day. See how MDS Manufacturing uses the FastARC 2HT robotic welding solution to do the repetitive welding and keep workers happy.

Acieta is one of the largest Authorized FANUC System Integrators. In addition, we’re one of the few robotic integrators with robotic welding cells to offer 24/7 access to service technicians and our maintenance team.

For more complex robotic welding needs, learn more about the custom advanced robotic weld systems Acieta has integrated.

Connect with our team to learn more about how a robotic welding system could help you accomplish your growth goals.

Robotic Welding with Tony Gunn at MTDCNC

Automated welding has been around for decades and understandably provides its user with gains in production and reliability. Tony visits Acieta to talk about the solutions they offer to industry and how technologies in welding continually advance helping manufacturers in all industries.

Developed and Built in the U.S.A.

Maximize your output and increase production with the FastARC Robotic Welding by Acieta. Our high-speed robotic machine tool cells are a cost-effective introduction to automation, designed to solve labor and capacity challenges, fast.
