FastARC® CW Cobot

Consistently perfect welds all day

Stop the labor struggles

Skilled welders are a hot commodity, and production lines sit idle while companies struggle to fill jobs. Reduce your labor problems and get the most from your existing welding talent by moving the repetitive, mundane and simple welding tasks to a FastARC CW collaborative robot from Acieta.

Control costs

The industry is battling skyrocketing operational costs, but the FastARC CW is a cost-effective solution with a short payback timeframe. Typical FastARC cobot users see ROI in as little as 6 months (based on 2 shifts) because they are making more product at a much lower cost per part.

As a pre-engineered standard product, the FastARC CW is less expensive than a custom welding robot. Plus, it’s in stock and ready for quick delivery. Financing options are available to keep initial capital expenses low.

The FastARC CW includes a FANUC CRX-10iA/L 6-axis robot mounted on a mobile platform to move quickly between production areas. The system is compatible with Fronius, Lincoln Electric and Miller welding units.

FastARC CW Features

Fast delivery

As a standard cobot, the FastARC CW is delivered within weeks so users can ramp-up fast and immediately increase capacity.

Easy to Use

Intuitive software and a touchscreen interface make the FastARC CW simple to set up and operate so it can be managed by a less skilled worker. One person can operate several FastARC cobots simultaneously for optimal uptime.

Small footprint

No safety fencing is needed, which saves on costs and floor space.

Increases productivity

The FastARC CW welds accurately, consistently and reliably all day, every day.

Maximizes welding talent

With a FastARC on the shop floor, experienced welders have higher job satisfaction doing more stimulating work that utilizes their skills, so employers are more likely to retain their talented workers.

Robust

The FastARC CW is IP 67 rated with sealed components to work in dirty environments.

FastARC CW Specifications

CW Base Length	1838.7 mm (72.3 in)
CW Base Width	1233.4 mm (48.56 in)
CW Base Height w/ Robot in Zero Position	2083.47 mm (82.02 in)
CW Base Weight	923 kg (2035 lbs)
Weld Table Dimensions	1176 x 1168.4(46.29 in x 46 in)
Weld Table Max Part Weight	340.2 kg (750 lb)
Max Part Height at Robot Full Reach	up to 700 mm (27.55 in)
Max Part Height at Table Center	up to 984.3 (38.75 in)
Robot Model	FANUC CRX-10iA/L Collaborative 6 axis robot
Weld Power Source Included	Fronius, Lincoln® Electric or Miller® Brand Welder

Videos

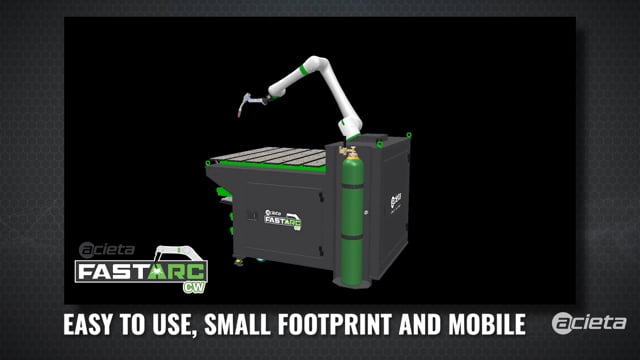

Acieta FastARC CW - Consistently perfect welds all day

Acieta FastARC CW: Basic Installation

Acieta FastARC® CW: Welding robot for low volume/high mix shops

Acieta FastARC CW: Recovering From an E-Stop

Developed and Built in the U.S.A.

Maximize your output and increase production with the FastARC CW by Acieta. Our collaborative weld cells are a cost-effective introduction to automation, designed to solve labor and capacity challenges, fast.
