FastLOAD CX Series Mobile Cobots

After Initial Setup, Moveable And Redeployable Within Minutes!

Step 1
Wheel robot in front of machine

Step 2
Plug in power and machine interface

Step 3
Quickly program with drag and drop interface

The Easiest, Most Flexible Cobots Ever!

The FastLOAD CX Series collaborative robotic cells can be quickly moved and set up at machines all around the shop. Working safety alongside people, these mobile collaborative robots could easily become everyone’s favorite coworkers.

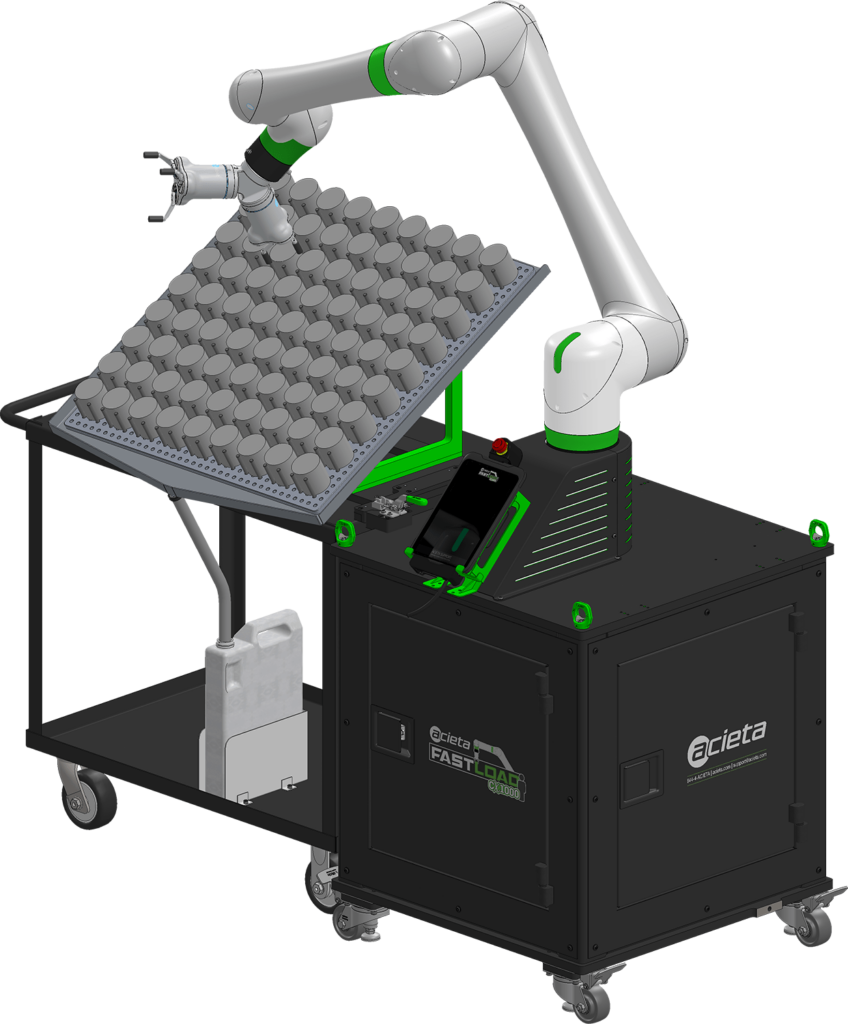

The FastLOAD CX1000 is equipped with a FANUC 10kg, collaborative robotic arm and the FastLOAD CX2000 is equipped with a FANUC 20kg, collaborative robotic arm. Both systems are mounted on a mobile platform that
one worker can move easily and are powered from a standard 120 volt outlet. They can be outfitted with up to three modular carts to handle a wide variety of parts or allow more parts in the queue.

Is a Collaborative Robot (Cobot) the Right Fit for You?

Is your capacity limited because of labor?
Do you have unused equipment on your floor?
Do you need to maximize floor space usage?
Do you have parts smaller than 150 mm (5.9 in) diameter or width?
Do you have two machines you’d like to run together?
Could you use an inbound/outbound system for an existing cell?
Do you need to load/unload CMMs, lathes, and mills?
Would you like to increase utilization on a machine with a 30+ second cycle time?

If you said yes to any of the above, a FastLOAD CX cobot could be your next best hire!

Prepare for growth

Are you ready for future growth?

Expand capacity and reduce costs by investing In a FastLOAD CX SERIES cobot. You can take on more and varied projects without additional labor headaches.

If you’re faced with capacity challenges, labor shortages, or quality variability, FastLOAD standard cells from Acieta can help you address key business challenges, fast. We can provide a full range of supporting services, including installation as well as assistance in overall operations, engineering and training in robot and cobot applications.

Some examples of ideal FastLOAD CX SERIES applications:

Load/Unload
Machine Tending
Part Inspection
Pick and Place
Packing
Palletizing

And many more!

FastLOAD CX Series Features

One piece weldment offers small footprint and easy installation
Wheels allow for ease of mobility
Intuitive touchscreen interface for quick part setup
Hand-guided programming
Electric grippers with long stroke for a variety of part sizes
Robot is IP67 rated – ideal for industrial environments
Can simultaneously tend two machines
Mobile cobot with multiple mobile fixturing carts available
Fixturing is adjustable to accommodate different part heights and sizes
Operator can load/unload parts while robot is working
Easy-to-program collaborative robot with a visually based drag-and-drop interface that lets you get started — and make modifications — quickly

FAST DELIVERY

As a standard cobot, Acieta will deliver the FastLOAD CX1000 or CX2000 to you in as quickly as one week, so you can ramp-up fast and immediately increase capacity.

DRAG AND DROP PROGRAMMING

An intuitive interface makes programming very easy. Setup is quick and easy.

TWICE THE PRODUCTIVITY

The FastLOAD CX Series can operate up to two different machines simultaneously for optimal throughput.

LOWER COSTS, FAST ROI

Automation increases capacity and lowers cost per part, so most shops see an ROI in 6 to 12 months*. (*Average ROI utilizing 2 shifts)

NEVER LEAVE A MACHINE IDLE

The FastLOAD CX Series mobile cobot is cart mounted so it can be easily moved to different machines as needed and fitted with end-of-arm attachments to perform different tasks such as loading/unloading.

SAVES SPACE

The FastLOAD CX Series expandable cobot cell has a small footprint and doesn’t require safety fencing, so it takes up, on average, 80% less floor space than a traditional robotic cell. And the wheels allow for easy mobility to anywhere in your facility.

FastLOAD CX Specifications

Base Length	838.3 mm (33 in)
Base Width	844.8 mm (33.26 in)
System Weight	213 kg (470 lbs)
Robot Model	FastLOAD CX1000: FANUC CRX-10iA/L Collaborative 6 axis robot FastLOAD CX2000: FANUC CRX-20iA/L Collaborative 6 axis robot
Robot Payload	FastLOAD CX1000: 10 kg (22 lbs) FastLOAD CX2000: 20 kg (44 lbs)
Robot Reach	1418 mm (55.83 in)
Max Part Width (2 Finger)	158 mm (6.22 in)
Max Part Diameter (3 Finger)	150 mm (5.91 in)

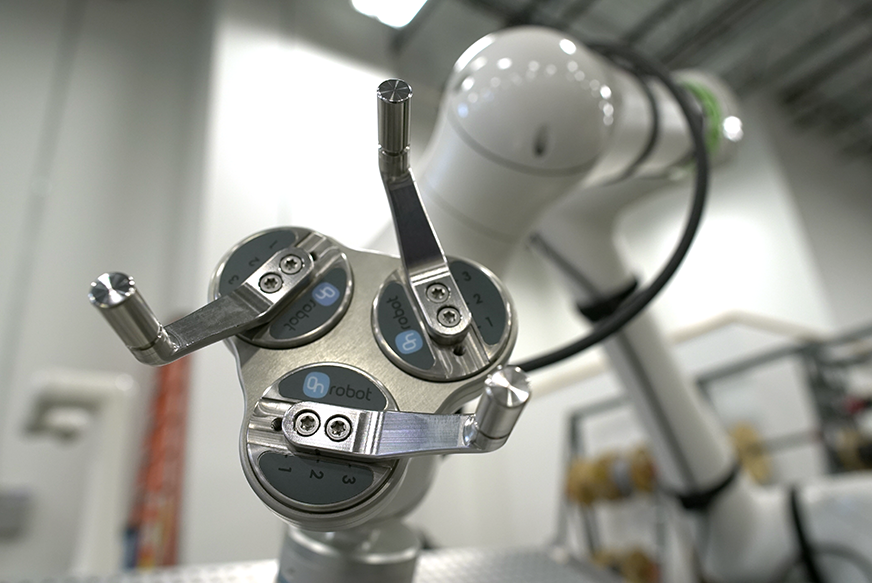

Gripper Options	Two finger gripper for square parts or three finger gripper for round parts

Videos

Acieta FastLOAD CX1000 - Twice the productivity with a fast ROI

FastLOAD CX1000: Drag and Drop Programming Demo

Programming an Acieta FastLOAD CX1000 Cobot

FastLOAD CX1000 Cobot: How to Teach a User Frame

FastLOAD CX1000 Cobot: How to Set Up and Use the Floor Mount Kit

FastLOAD CX1000: Basic Installation

FastLOAD CX1000: How to Program an OnRobot 3-Finger Gripper

FastLOAD CX1000: Setting Up Payloads

Maximize Your Output And Increase Production With Fastload By Acieta.

Acieta’s FastLOAD CX Series collaborative flexible robotic cells are a cost-effective introduction to automation, designed as a fast solution to solve labor and capacity challenges.

Acieta provides a wide range of robotically automated solutions and services customized for the unique needs of manufacturing applications, including machine tooling, inbound and outbound loading. Click here for some frequently asked questions about how mobile cobots can be used within your facilities. Connect with us today to start growing your business, fast.

Developed and Built in the U.S.A.

Maximize your output and increase production with the FastLOAD CX1000 and FastLOAD CX2000 cobots by Acieta. Our collaborative robotic cells are a cost-effective introduction to automation, designed to solve labor and capacity challenges, fast.
