Agriculture + Construction
Robotic Press Brake Automation
A Heavy Metal System

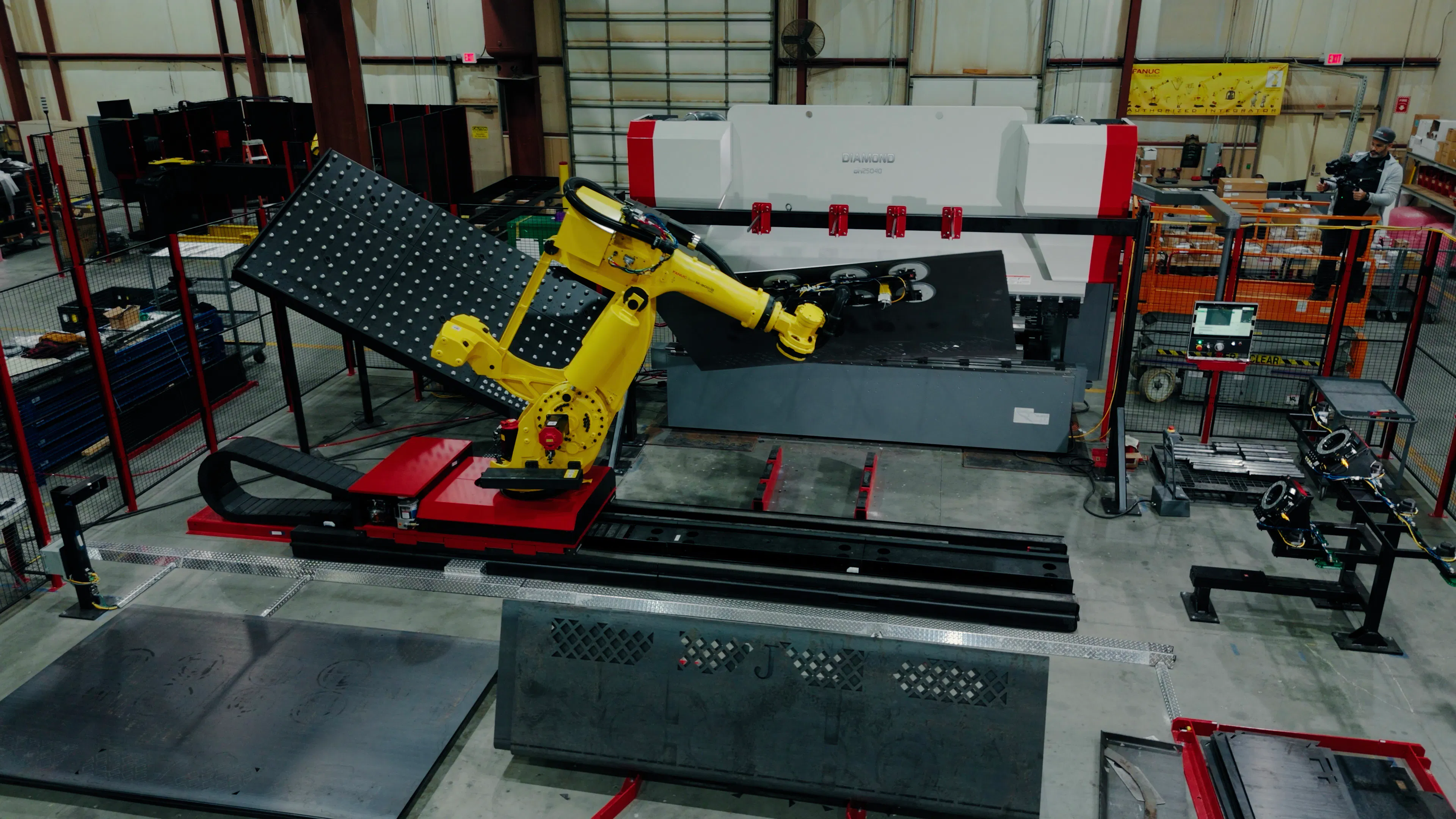

Built to eliminate the hazard and labor of handling 70-lb sheets of metal, this Robotically Integrated Bending Solution (RIBS) system features interchangeable end-of-arm tooling grips designed to bend over 45 different parts.
700,000
Parts produced in 2 years
System Components
The press brake is one of the most common pieces of manufacturing equipment, yet until recently it was considered a manual, and costly, operation.

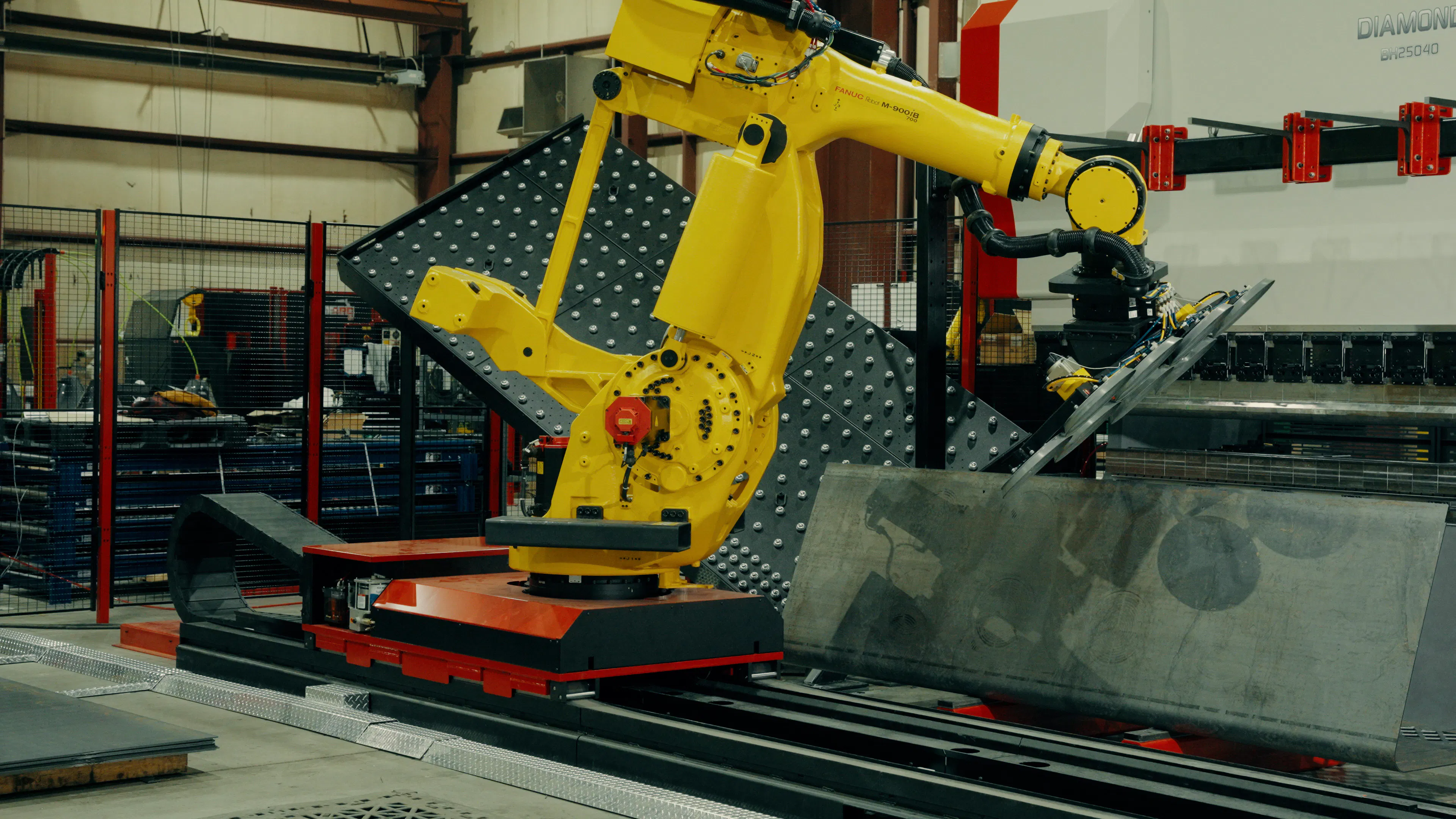

The system is built around a FANUC M-900ib heavy payload robot, capable of loads up to 1500lbs.
Providing a seventh axis of movement, the RTU extends the system’s working envelope.

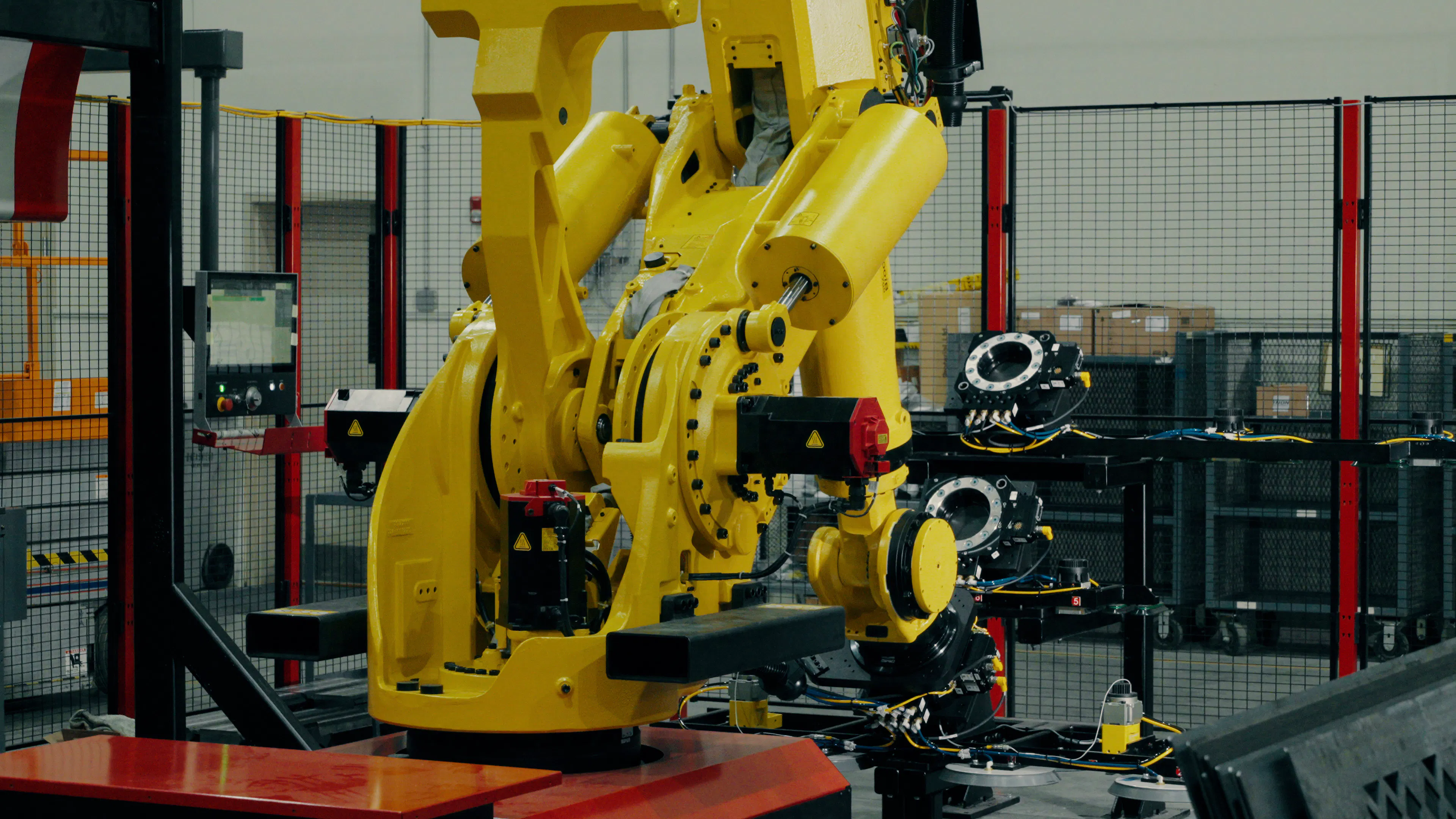

The system automatically swaps between multiple custom vacuum-grip EOAT solutions to handle 45 different parts.
Proper orientation of every sheet is ensured by a gravity blank alignment table.
A Mitsubishi Diamond BH Series hybrid press can deliver up to 250 tons of bending force along its 13' bed.
